PANNELTAC Carl-Gustaf Carry Harness (CG-CH)

Overview

Two-point carry harness configured around dual adjustable shoulder straps for carrying the Carl Gustaf system.

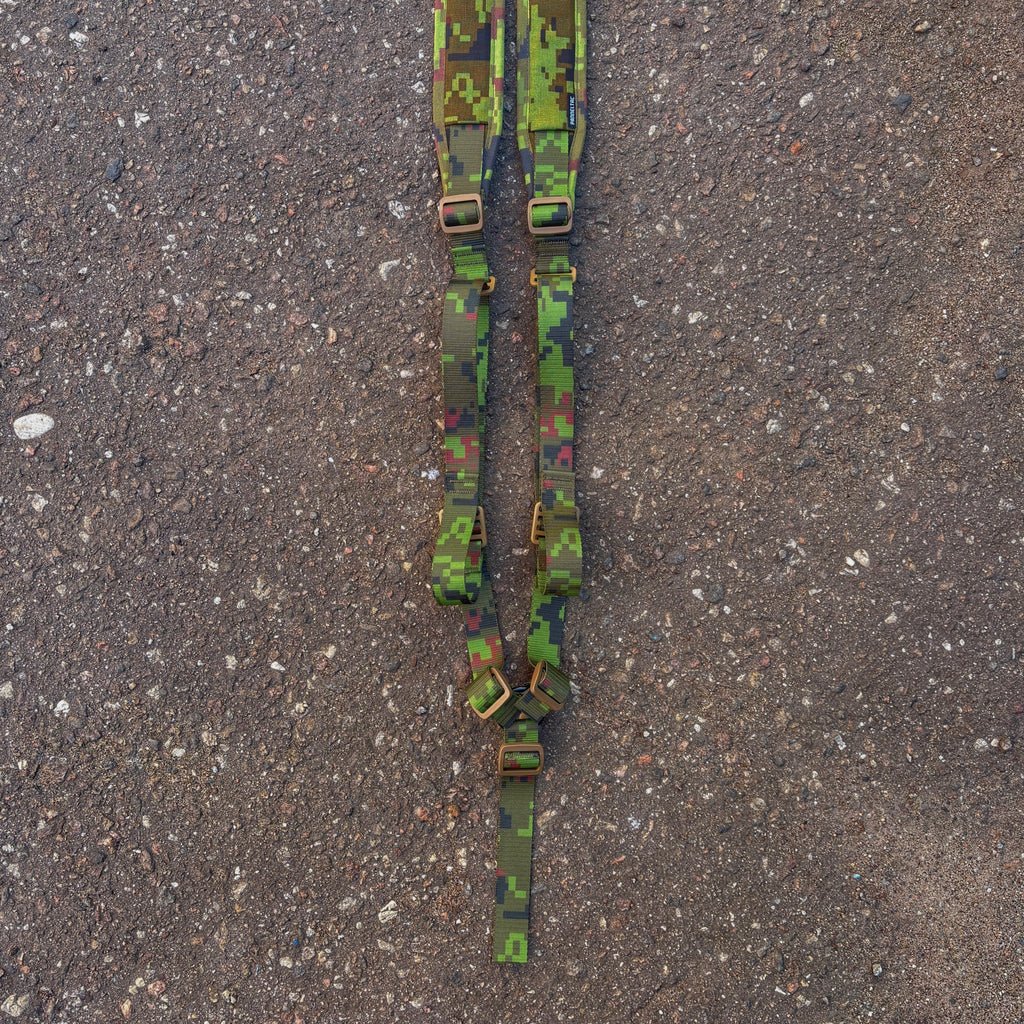

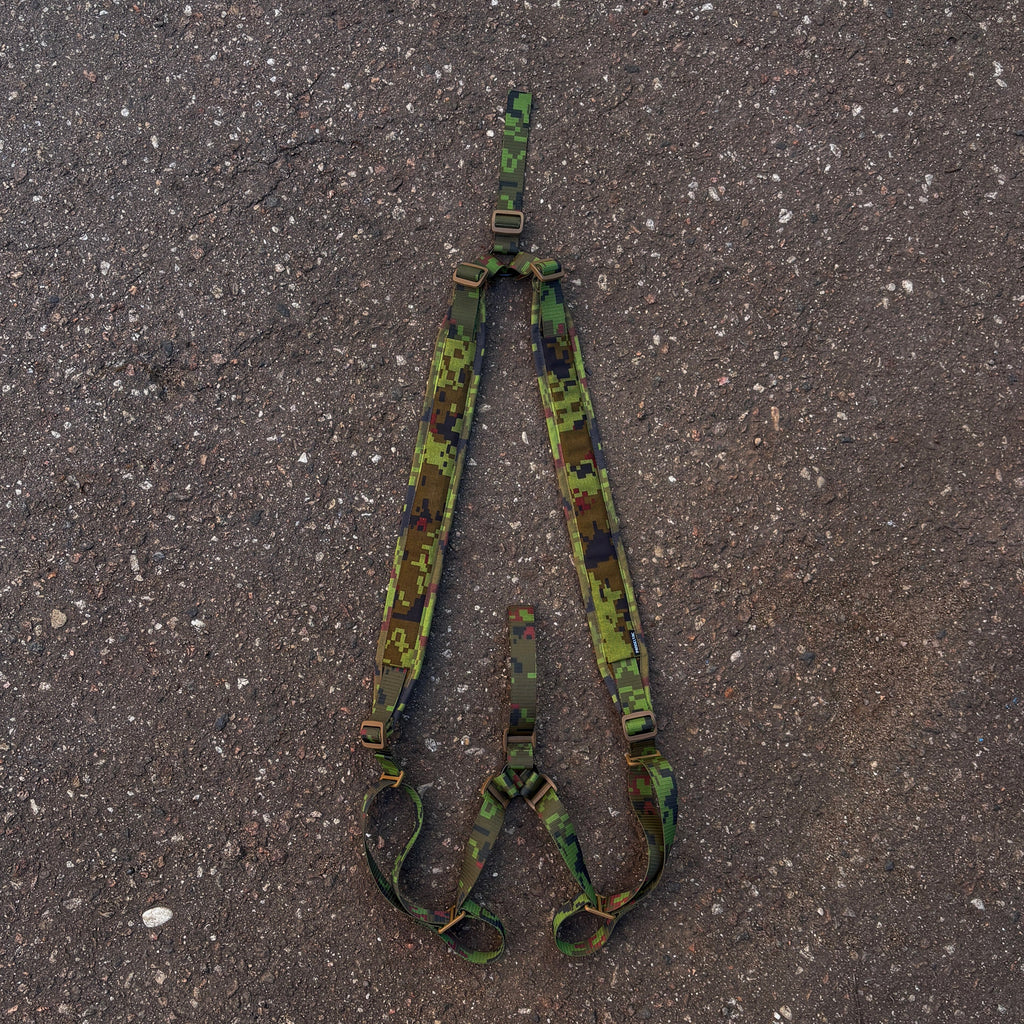

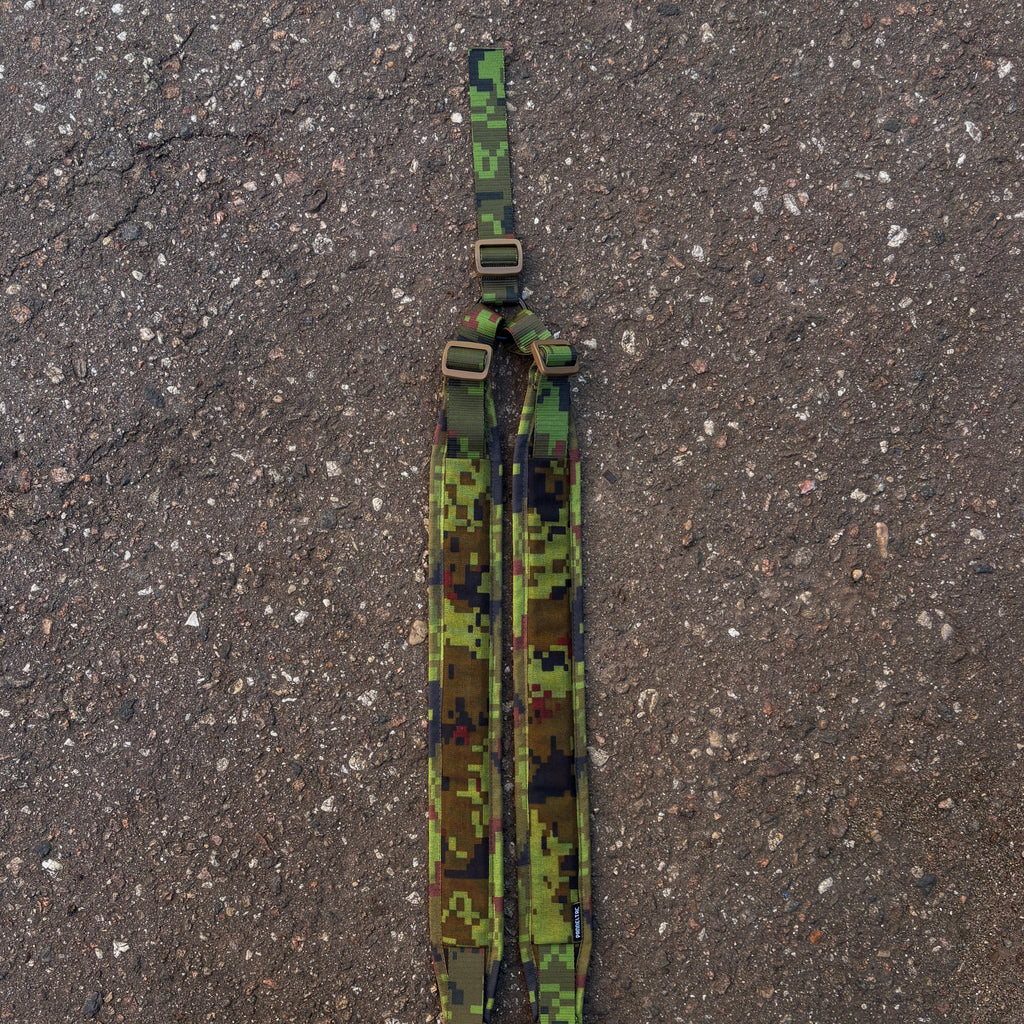

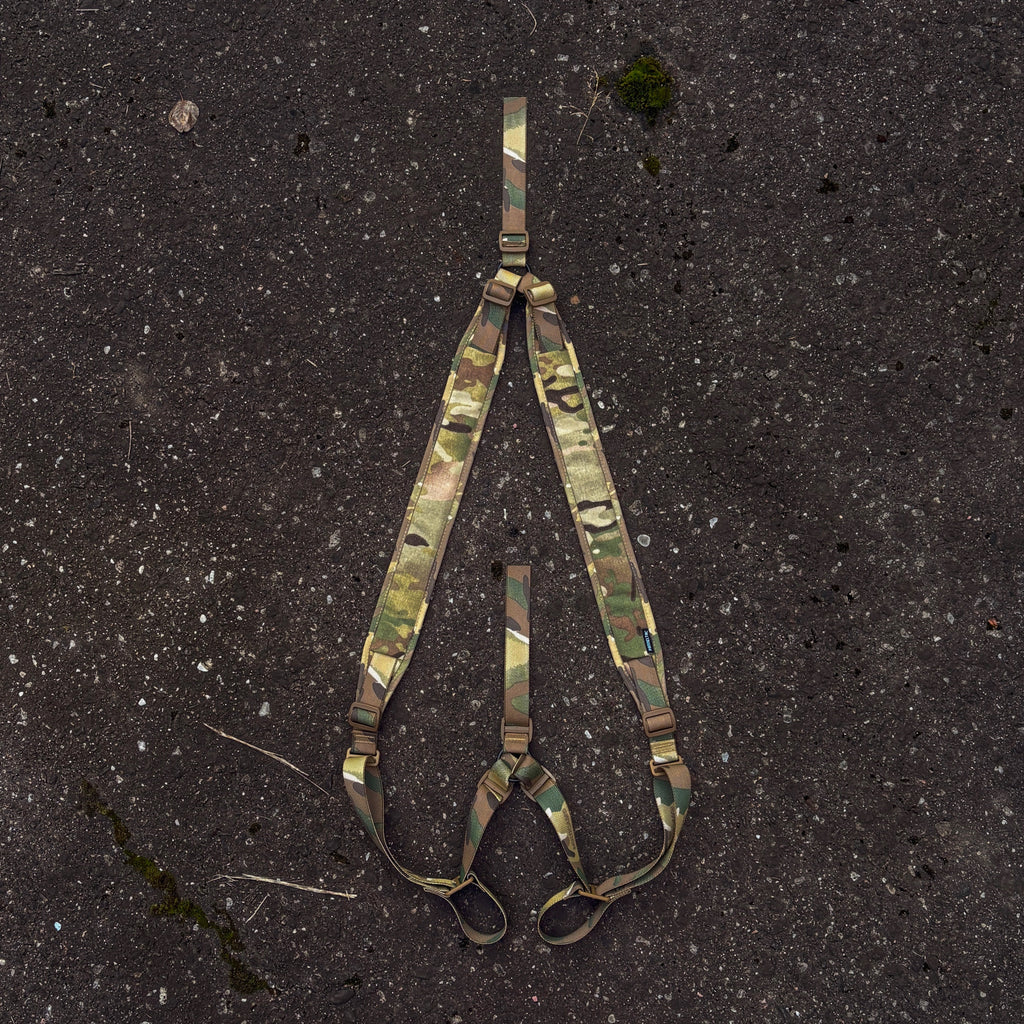

The PANNELTAC Carl Gustaf Carry Harness (CG-CH) consists of two adjustable shoulder straps connected via a central metal ring and webbing interface to the weapon. When tightened, the system carries the Carl Gustaf close to the body in a backpack‑style configuration suitable for movement and patrol. Quick‑adjust sliders allow rapid loosening of one shoulder strap, shifting the load to one side and enabling fast removal of the weapon from the back without fighting a tightly adjusted carry setup. The design remains minimal, prioritizing speed, simplicity and predictable handling during patrol and combat use.

Compatibility

• Designed specifically for Carl Gustaf recoilless rifle systems

• Attaches to the weapon via webbing interface

• No additional mounting hardware needed

Features

• Harness configuration: dual two-point shoulder straps connected via central metal ring

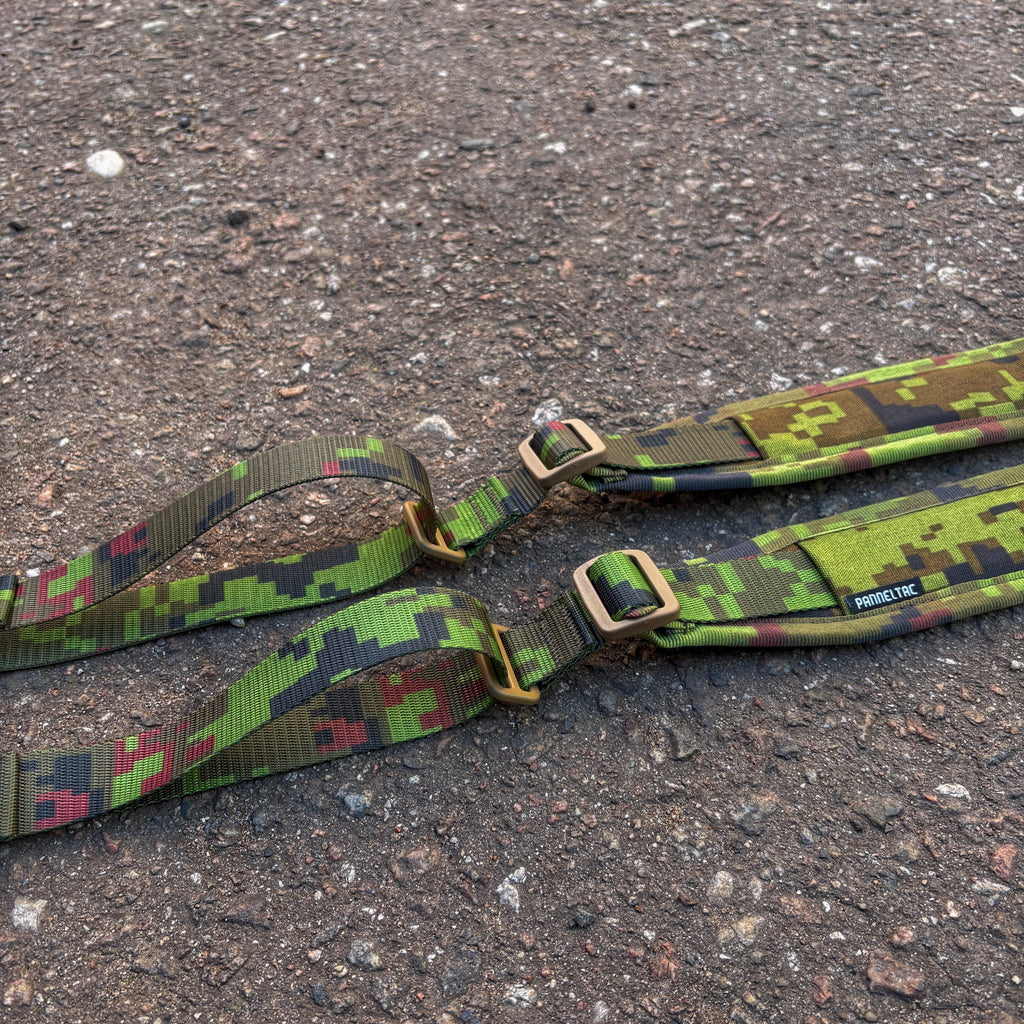

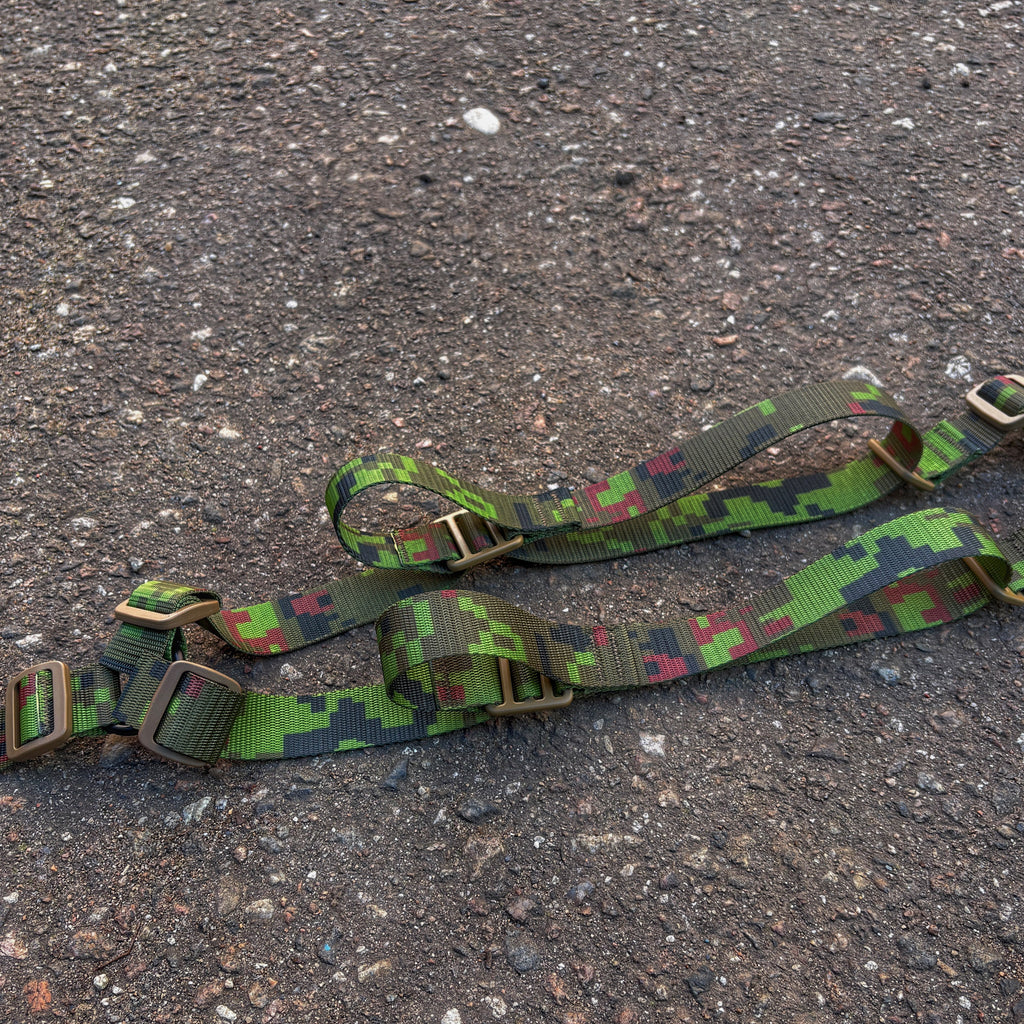

• Adjustment system: metal quick-adjust sliders with pull tabs

• Carry method: backpack-style over-the-shoulder carry with load distributed across both shoulders

• Shoulder straps: lightly cushioned

• Weapon interface: webbing-only attachment with no metal hardware contacting the weapon, reducing wear on attachment points and preventing damage to composite-based Carl Gustaf M4 variants

• Webbing width: 25 mm

• Hardware: mixed polymer and metal configuration
  - 2M “Due Emme” polymer triglides
  - OnlyPrecision metal hardware

• Materials: NIR-compliant nylon webbing with CORDURA® / FOXDURA padding elements

Dimensions

• Overall harness length: 980 - 1400 mm

• Quick adjustment range per shoulder strap: 210 mm

• Shoulder pad length: 480 mm

• Webbing width: 25 mm
